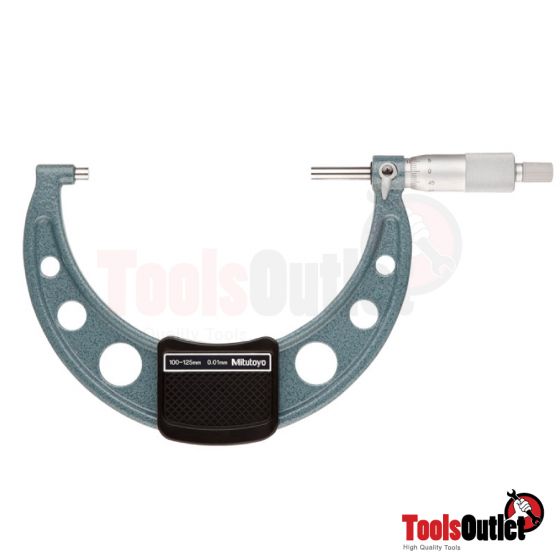

Micrometer ไมโครมิเตอร์ (0.01X100-125mm) Mitutoyo รุ่น 103-141-10
พร้อมส่ง
รหัสสินค้า
1MIT-103-141-10
ราคาพิเศษ
฿2,075.80
ราคาปรกติ
฿2,965.43
Lightweight workshop design with baked-enamel-finished frame.
- - Equipped with Ratchet Stop for constant measuring force.
Outside Micrometer Series 103
Range 100-125 mm
Graduation 0.01 mm
Order No. 103-141-10
| ORDER NO. | 103-141-10 |
|---|---|
| Range: | 100 - 125 mm |
| Accuracy: | ±3 µm |
| Flatness: | 0,6 μm |
| Mass: | 515 g |
| Measuring surfaces: | Carbide-tipped, micro-lap finish |
| Parallelism: | (2+L/100) μm, L = max. range (mm) |
| Digital/Analog: | Analog |
| Graduation: | 0,01 mm |
| Scale: | Thimble and sleeve satin chrome finish, ø18 mm |
| Measuring spindle: | With spindle lock, ø6,35 mm , spindle pitch 0,5 mm |
| Remarks: | Ratched Stop |
| Measuring force: | 5 - 15 N |
| Delivered: | Including box, setting standard, key |
| Inch-Metric: | Metric |
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
| range micrometer | 100 - 125 mm. |
| Graduation | 0.01 mm. |
