Micrometer ไมโครมิเตอร์ Mitutoyo รุ่น 103-142-10
พร้อมส่ง
รหัสสินค้า
1MIT-103-142-10
ราคาพิเศษ
฿2,996.00
ราคาปรกติ
฿4,280.00
Lightweight workshop design with baked-enamel-finished frame.
- - Equipped with Ratchet Stop for constant measuring force.

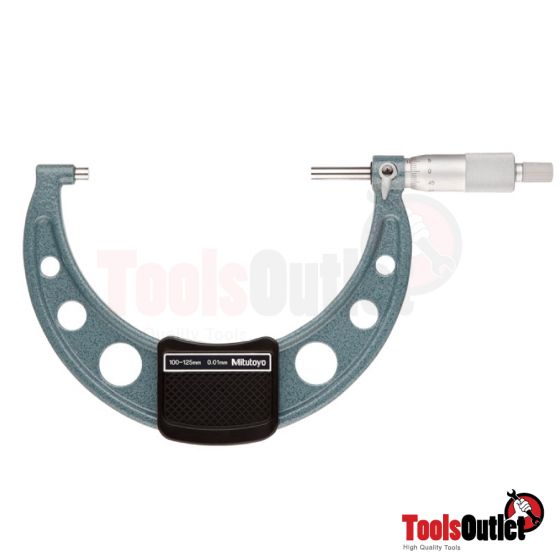

Outside Micrometer Series 103
Range 100-125 mm
Graduation 0.01 mm
Order No. 103-141-10
| ORDER NO. | 103-142-10 |
|---|---|
|
Range:
|
125 - 150 mm
|
|
Maximum Permissible Error J MPE:
|
±3 µm
|
|
Measuring force:
|
5 - 10 N
|
|
Mass:
|
665 g
|
|
Parallelism:
|
(2+L/100) μm, L = max. range (mm)
|
|
Measuring face:
|
Carbide-tipped, micro-lap finish
|
|
Measuring spindle:
|
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
|
|
Scale:
|
Thimble and sleeve satin chrome finish, ø18 mm
|
|
Digital/Analog:
|
Analog
|
|
Inch-Metric:
|
Metric
|
|
Graduation:
|
0,01 mm
|
|
Measuring spindle:
|
With spindle lock, ø6,35 mm , spindle pitch 0,5 mm
|
|
Delivered:
|
Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)
|
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
| range micrometer | 125 -150 mm. |
| Graduation | 0.01 mm. |
