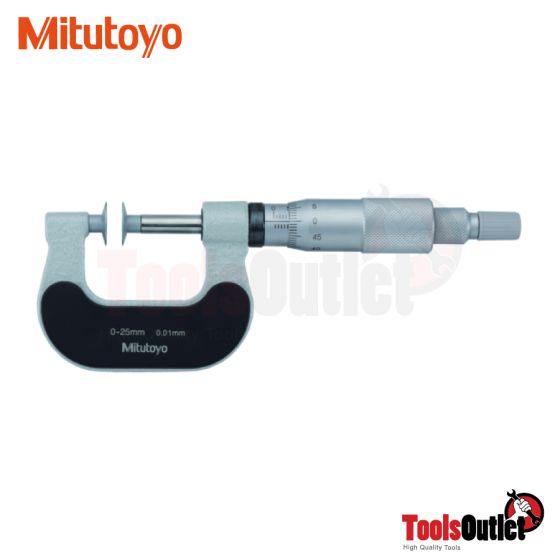

This Disc Micrometer has a non-rotating spindle and allows you measure a range of different
materials.
It offers you the following benefits:
- It features a non-rotating spindle and disc-shaped measuring surfaces.
- Measuring the root tangent length of spur and helical gears
- Measurable range of gear pitch: 0,5-6 module
- It‘s suitable for measuring materials such as felt, rubber, cardboard and fabric.
ORDER NO. | 169-101-10 |
---|---|
Range:
|
0 - 25 mm
|
Parallelism:
|
3 µm
|
Maximum Permissible Error J MPE:
|
±4 µm
|
Mass:
|
230 g
|
Graduation:
|
0.01mm
|
Measuring face:
|
Hardened steel, micro-lap finish
|
Measuring spindle:
|
ø6,35 mm, non-rotating, spindle pitch 0,5 mm
|
Scale:
|
Thimble and sleeve satin chrome finish, ø18 mm
|
Inch-Metric:
|
Metric
|
Digital/Analog:
|
Analog
|
Delivered:
|
Including box, setting standard (from 25 mm upward), key
|

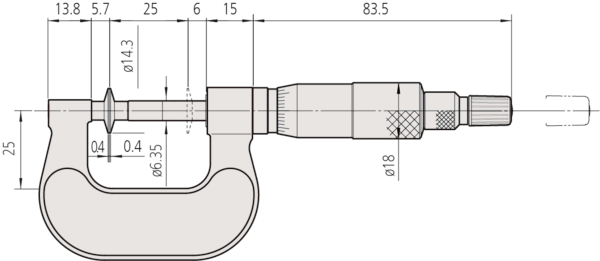

L: 0 mm a: 13.8 mm b: 25 mm c: 5.7 mm |
