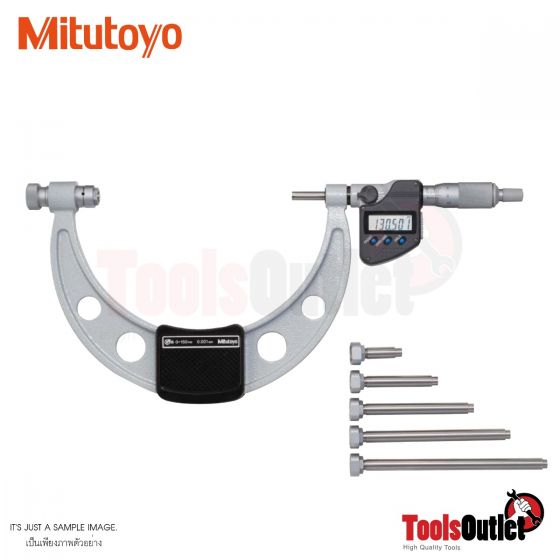

Micrometer ไมโครดิจิตอลชุด (0.001X700-800 มิล) Mitutoyo รุ่น 340-524
พร้อมส่ง
รหัสสินค้า
1MIT-340-524
ราคาพิเศษ
฿27,841.40
ราคาปรกติ
฿39,773.43
This Digimatic Micrometer offers you an extra wide measuring range, and has the following benefits:
- Easy, interchangeable anvils allow a wide range of measurements.
- Ratchet stop for constant force.
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Range: |
700 - 800 mm
|
| Digital step: |
0.001 mm
|
| Limit of error: |
±15 µm
|
| Spindle feed error: |
3 µm
|
| Flatness: |
1 µm
|
| Parallelism: |
10 µm
|
| Display: |
LCD, character height 7.5 mm
|
| Measuring spindle: |
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0.5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø21 mm
|
| Measuring force: |
10 - 15 N
|
| Measuring force: |
5-10 N, 10-14 N (over 300 mm)
|
| Power supply: |
Battery SR-44
|
| Battery life: |
Approx. 1,8 years
|
| Setting standard: |
4 (700, 725, 750, 775 mm)
|
| Interchangeable anvils: |
4
|
| Delivered: |
including box, gauge block, inserts,
key, 1 battery |
| ABS / INC (INC ZERO): |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Function lock: |
Yes
|
| HOLD: |
Yes
|
| 2 x PRESET: |
Yes
|
 |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
