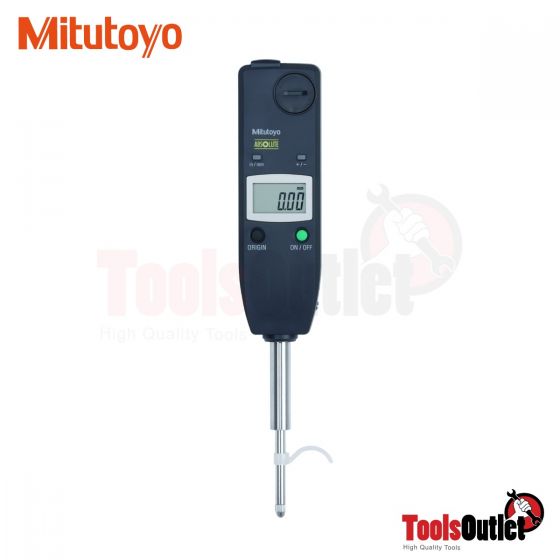

Digital Indicator ไดอัลเกจดิจิตอล Mitutoyo รุ่น 575-123
สินค้าหมด
รหัสสินค้า
1MIT-575-123
ราคาพิเศษ
฿5,553.30
ราคาปรกติ
฿7,933.29
An economical, slim-style Mitutoyo digital indicator with a long battery life suited to installation in measuring jigs. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Inch/Metric
|
| Range: |
1"/25.4 mm
|
| Digital step: |
0.0005"/0.01 mm
|
| Max. Permissible Error E MPE (Total Range): |
±0.001"/0.02 mm
|
| H MPE (Hysteresis): |
0.001"/0.02 mm
|
| R MPE (Repeatability): |
0.0005"/0.01 mm
|
| Measuring force MPL: |
≤1.8 N
|
| Protection: |
IP42
|
| Type: |
ASME/ANSI/AGD Standard
|
| Mass: |
140 g
|
| Scale: |
Electrostatic capacitance type absolute linear encoder
|
| Display: |
LCD, character height 8.5 mm
|
| Max. response speed: |
Unlimited
|
| Alarm: |
Low voltage, sensor error, ABS data composition error
|
| Stem Ø: |
9.52 mm
|
| Contact point: |
Carbide ball, thread: No.4-48UNF
|
| Power supply: |
1 battery SR44
|
| Battery life: |
Approx. 20000 hours
|
| Remarks: |
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
|
| Digimatic data output: |
Yes
|
| ON/OFF: |
Yes
|
| ORIGIN (ABS-Zero): |
Yes
|
| Counting direction switchable: |
Yes
|
| Inch/Metric switchable: |
Yes
|
 |
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
