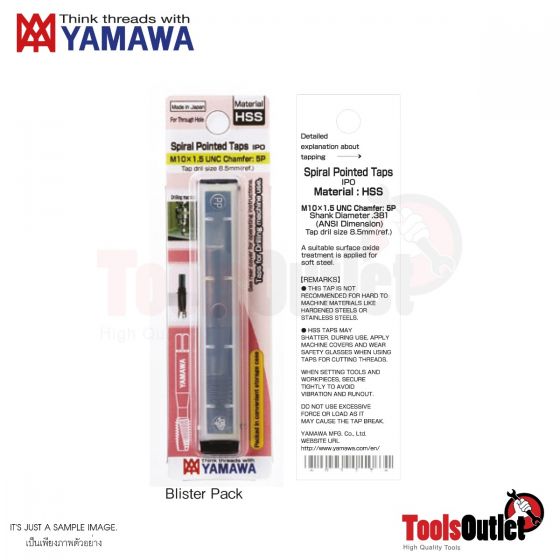

Spiral Pointed Tap Series for through hole ต๊าปไฮสปีดสำหรับรูละทุ YAMAWA รุ่น IPO
 |
| Blister Pack Segment：1E |
| Size | Code | Chamfer | L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
| For Metric Threads |
| M3×0.5 | PI73.0GBP | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 1 |
| M4×0.7 | PI74.0IBP | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 1 |
| M5×0.8 | PI75.0KBP | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 1 |
| M6×1 | PI76.0MBP | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 1 |
| M8×1.25 | PI78.0NBP | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 2 |
| M10×1.5 | PI7010OBP | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 2 |
ไม่ระบุ
| ไซส์ | M2.5X0.45 มม. |
|---|---|
| ยี่ห้อ เครื่องมือตัด เจาะ | YAMAWA |
| BRANDS | YAMAWA |
